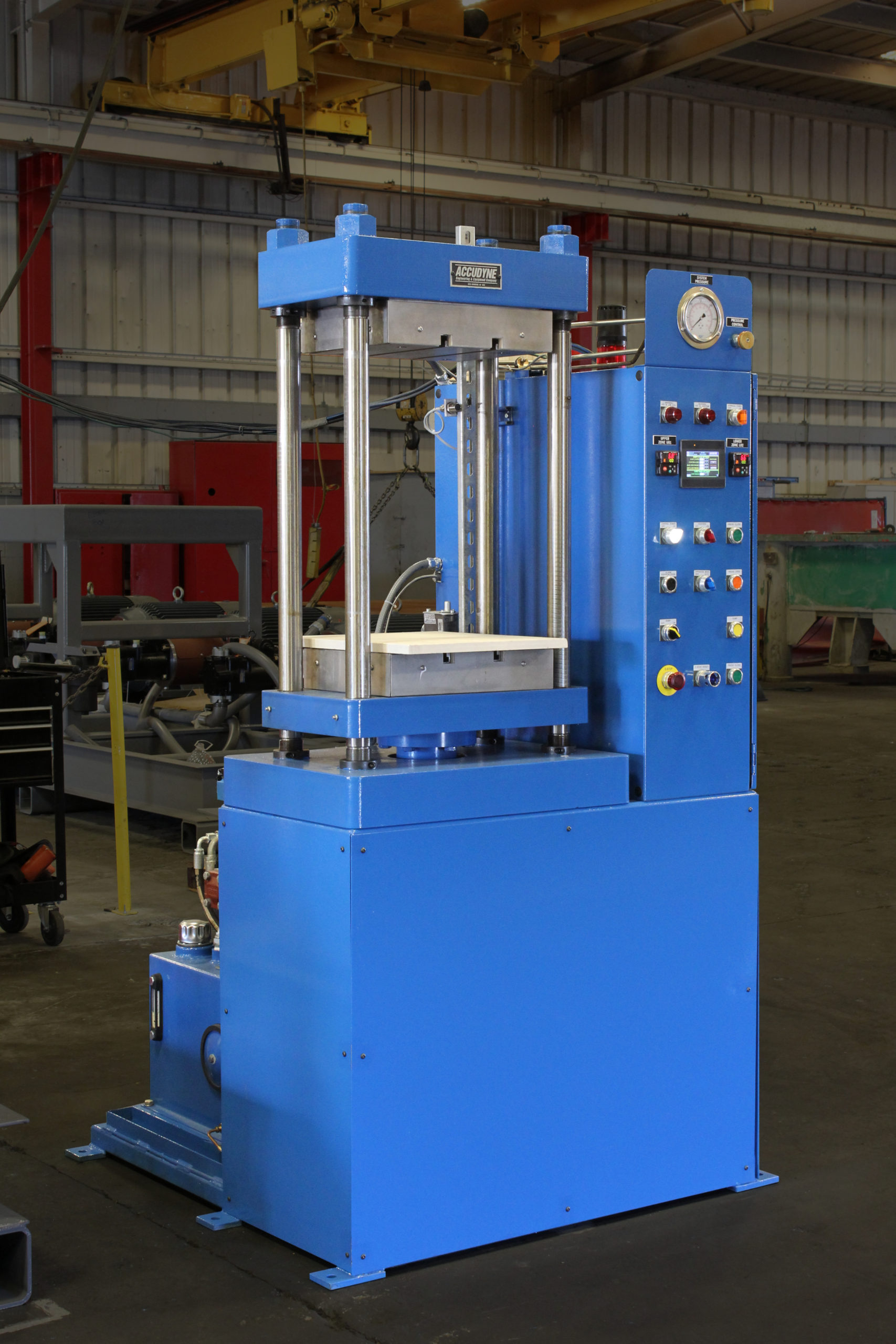

50 Ton , 15″ (L/R) x 12″ (F/B) Platen Size, Precision Molding Hydraulic Press
Press Design
- Heavy Duty Four Post Construction
- Up-Acting Configuration
- Cabinet Style Frame / All-in-One Press Frame
- Self Contained Hydraulic Power Unit
- Electrical Control Panel
- Multi-Cell Cartridge Type Heaters
- T-Slot Tool Mounting
Parameters
- Clamp Capacity: 50 Tons
- Main Cylinder: 7″ Bore Ø, Double Acting
- Platen Size: 15” (L/R) x 12” (F/B)
- Max Daylight: 24″ Platen-to-Platen
- Stroke: 24″ Full Platen Closure
- Operating Temperature: 450°F
