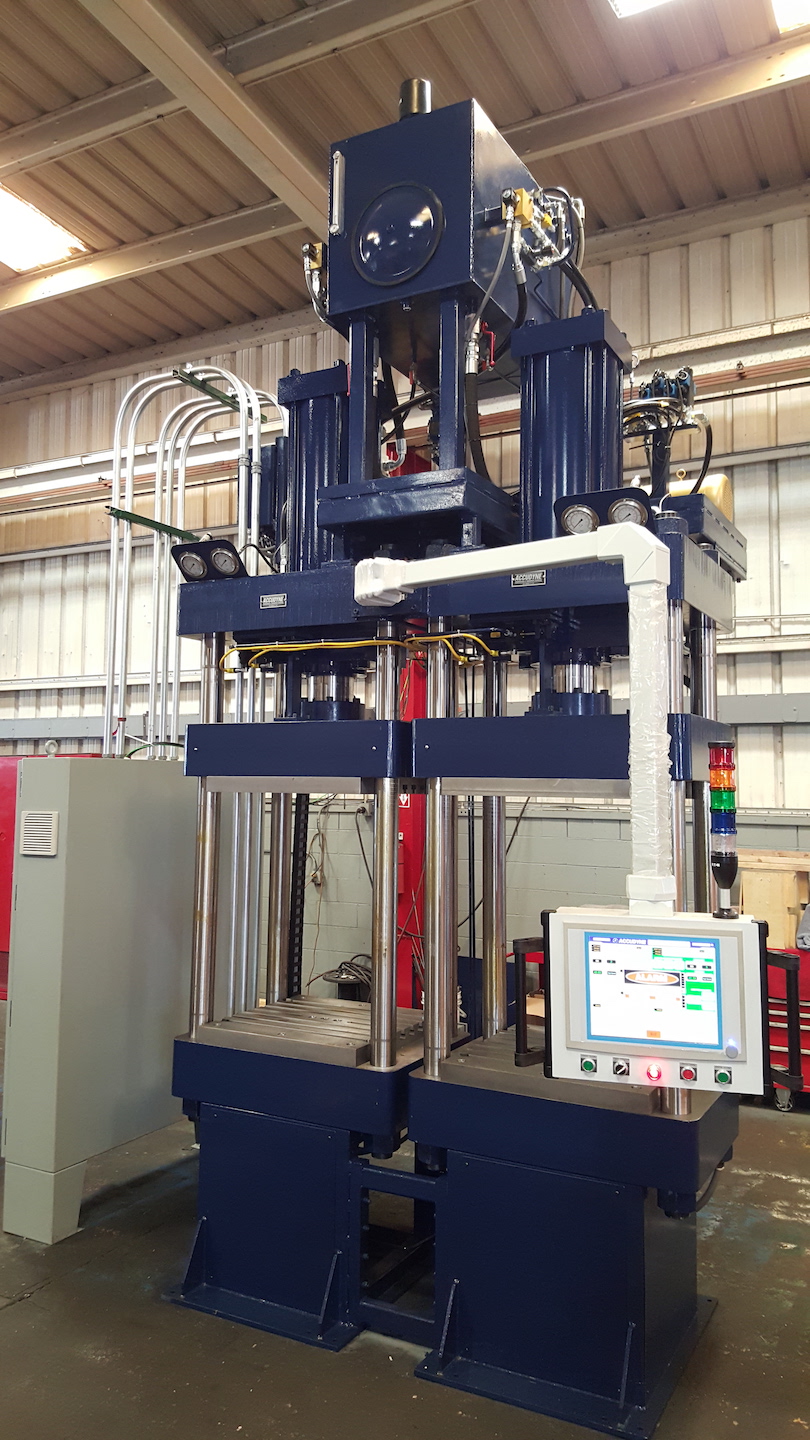

250 Ton, 50” (L/R) x 32” (F/B) Bed Size Composite Forming Press
Press Design
- Rigid Four Post Construction
- Down-acting Configuration
- Self Contained Hydraulic Power Unit
- Electrical Control Panel
- HMI Computer Interface
- Programmable Pressure via HMI
- Programmable Speed via HMI
Parameters
- Clamp Capacity: 600 Tons
- Main Cylinder: Two 16″ Bore Ø, Double Acting
- Stroke: 36″
- Platen Size: 50” (L/R) x 32” (F/B)
- Max Daylight: 50″ Platen-to-Platen
- Max Temperature: 800°F
