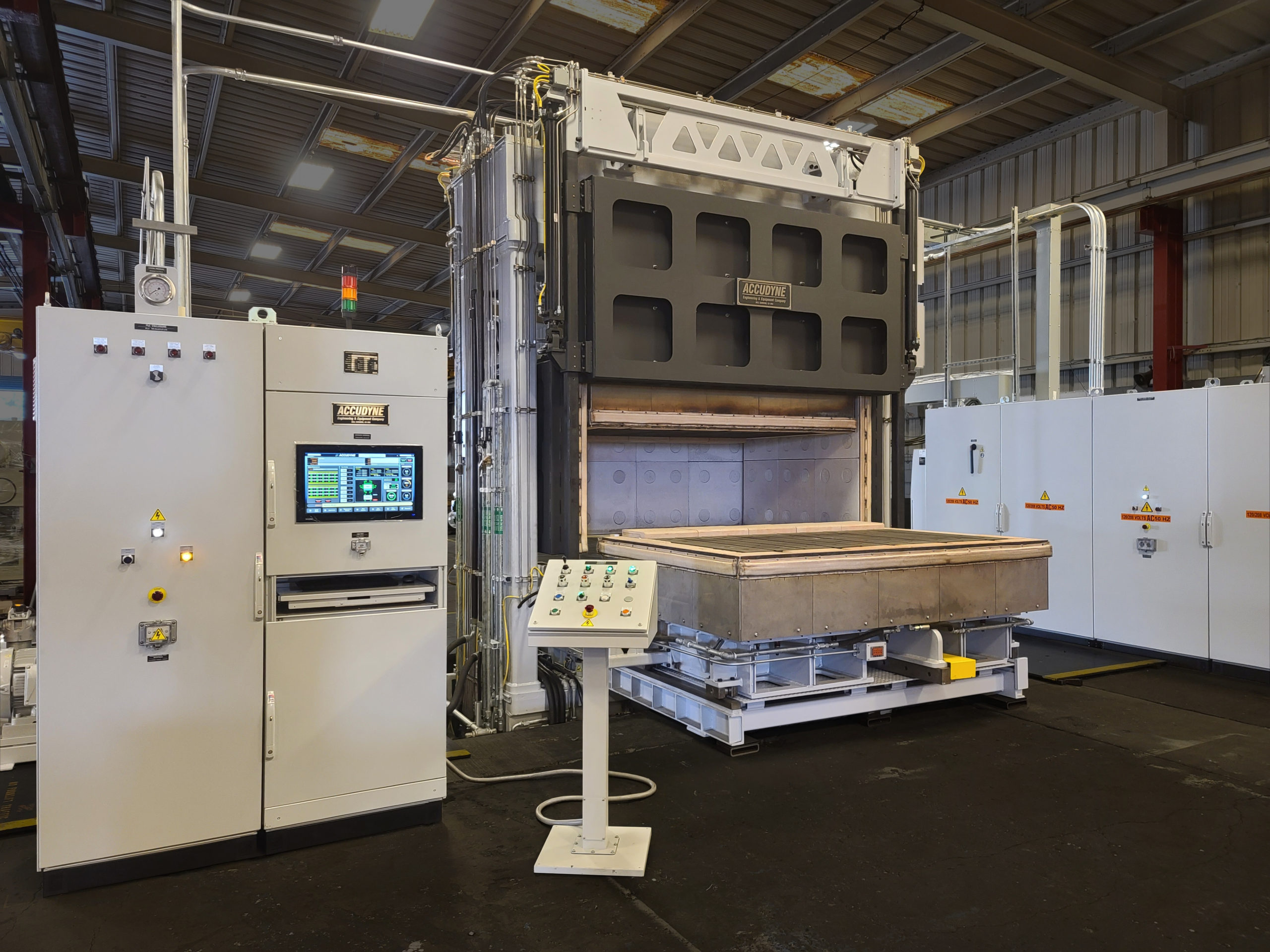

Press Design
- Hot Forming Applications
- High Temperature Titanium Alloy Forming
- Heavy Duty Press Frame
- Down-Acting Configuration
- Complete Insulation
- Lower Platen Shuttle
- Self Contained Hydraulic Power Unit
- Electrical Heating/Control Panels
- HMI Computer Interface
- Accudyne HF Process Control Software
- Process Recipe & Data Collection
- Multi-Cell Cartridge Type Heaters
- Integrated Platen Cooling
- T-Slot Tool Mounting
Parameters
- Clamp Capacity: 350 Metric Tons
- Cylinders: Two (2) 355.6mm / 14″ Bore Ø, Double Acting
- Stroke: 1000mm / 39.4″
- Platen Size: 2200mm / 86.61” (L/R) x 1200mm /47.25” (F/B)
- Max Daylight: 1100mm / 43.3″ Platen-to-Platen
- Min Daylight: 100mm / 3.94″ Platen-to-Platen
- Operating Temperature: 950°C / 1742°F
