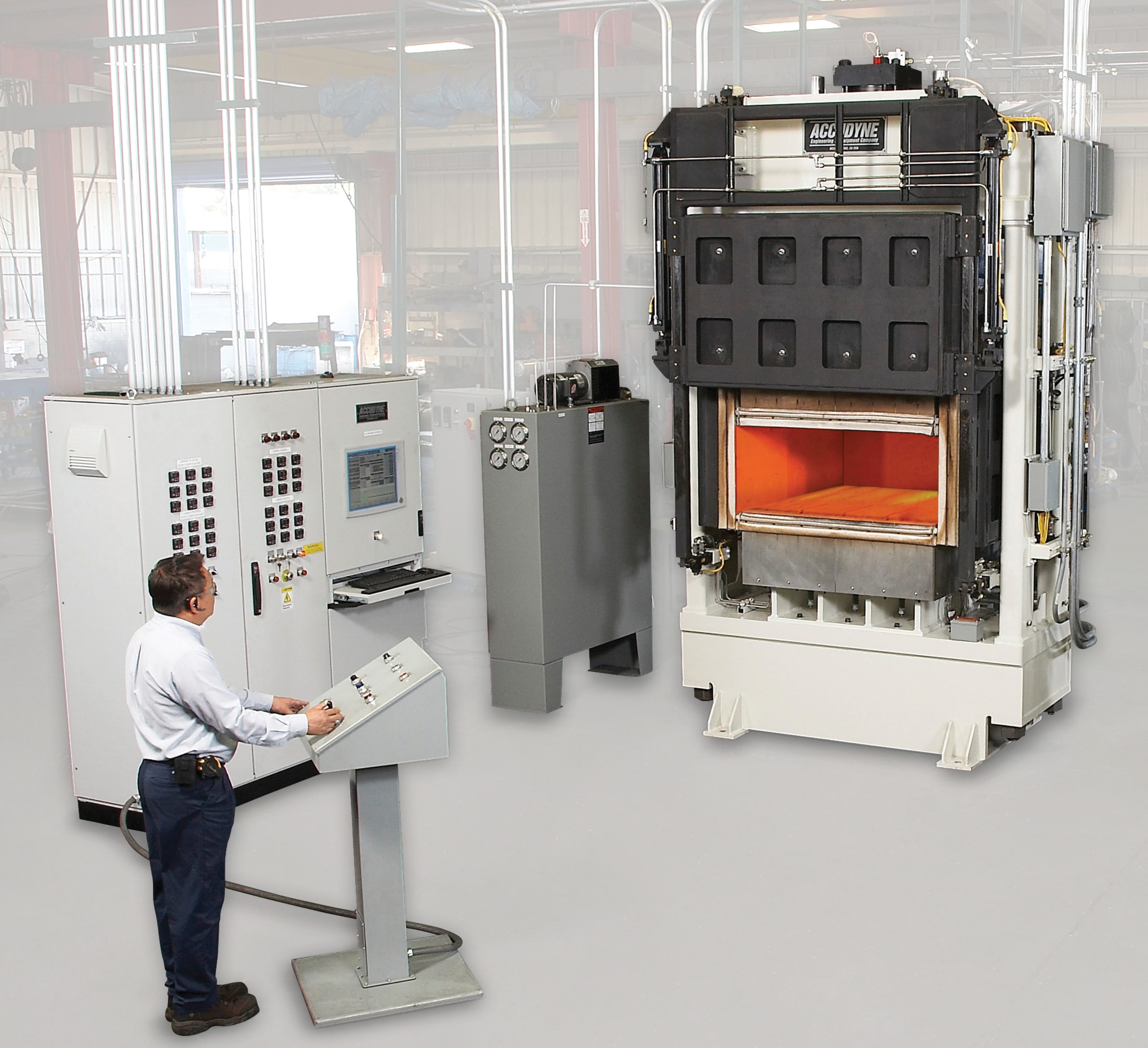

Press Design
- High Temperature SPF/DB/HF Applications
- Titanium and Aluminum Alloy Forming
- Heavy Duty Four Post Construction
- Down-Acting Configuration
- Complete Insulation
- Self Contained Hydraulic Power Unit
- Electrical Heating/Control Panel
- HMI Computer Interface
- Accudyne SPF/DB/HF Process Control Software
- Process Recipe & Data Collection
- Gas Management System
- Multi-Cell Cartridge Type Heaters
- T-Slot Tool Mounting
Parameters
- Clamp Capacity: 150 Metric Tons
- Main Cylinder: 305mm / 12″ Bore Ø, Double Acting
- Stroke: 600mm / 23.6″ Full Platen Closure
- Platen Size: 860mm / 33.86” (L/R) x 760mm / 29.9” (F/B)
- Max Daylight: 650mm / 25.6″ Platen-to-Platen
- Min Daylight: 250mm / 1.97″ Platen-to-Platen
- Operating Temperature: 1000°C / 1832°F
