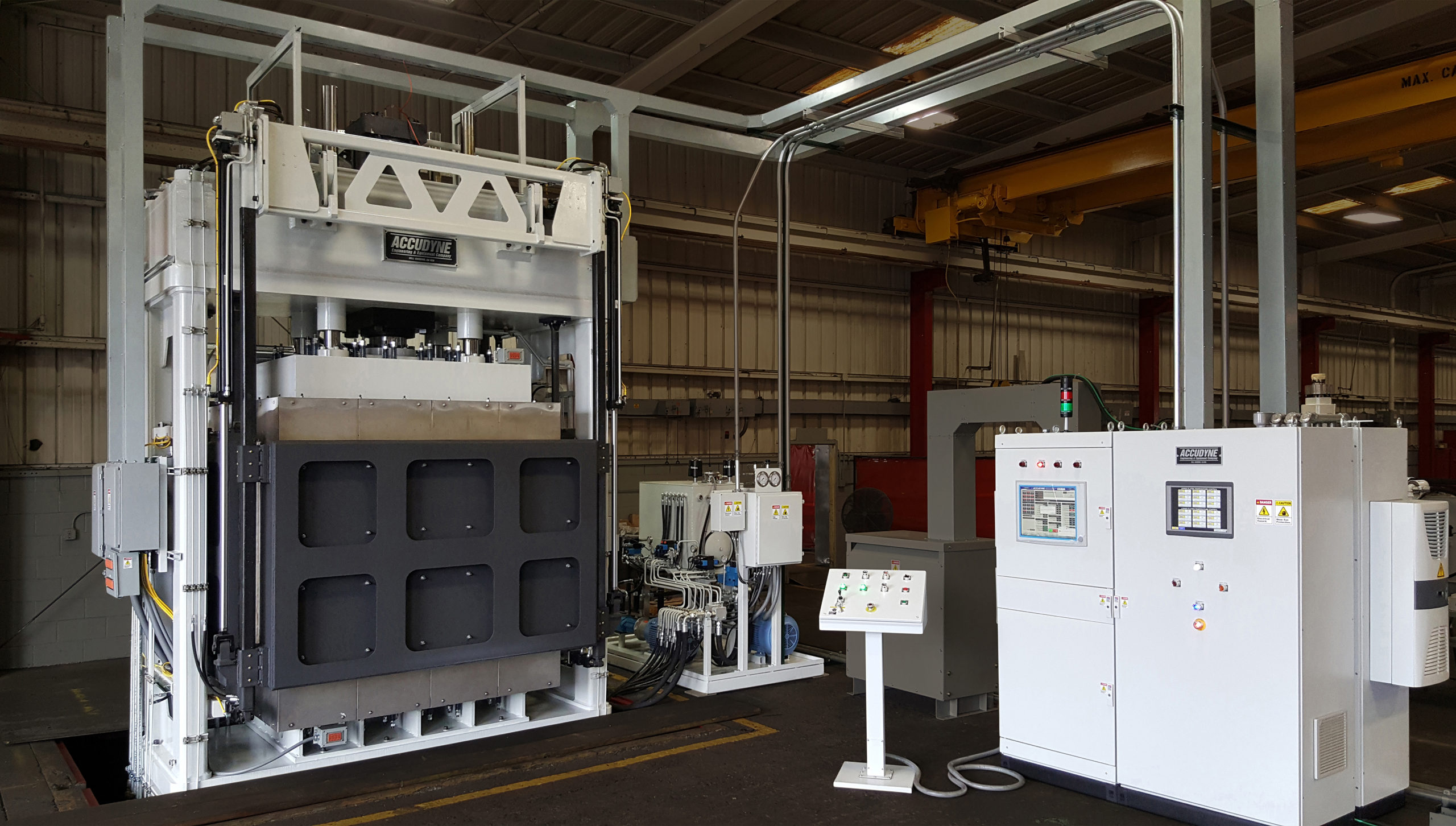

Hot Forming Press System
Press Design
- Hot Forming Applications
- High Temperature Titanium Alloy Forming
- Heavy Duty Post Frame Press
- Down-Acting Configuration
- Complete Insulation
- Self Contained Hydraulic Power Unit
- Electrical Heating/Control Panels
- HMI Computer Interface
- Accudyne HF Process Control Software
- Process Recipe & Data Collection
- Multi-Cell Cartridge Type Heaters
- T-Slot Tool Mounting
Parameters
- Clamp Capacity: 160 Metric Tons
- Main Cylinder: 355.6mm / 14″ Bore Ø, Double Acting
- Stroke: 1000mm / 39.4″
- Cushion Cylinder: 40 Metric Ton
- Cushion Stroke: 280mm / 11.02″
- Platen Size: 1600mm / 63.0” (L/R) x 1200mm / 47.24” (F/B)
- Max Daylight: 1150mm / 45.3″ Platen-to-Platen
- Min Daylight: 150mm / 5.9″ Platen-to-Platen
- Operating Temperature: 900°C / 1652°F
