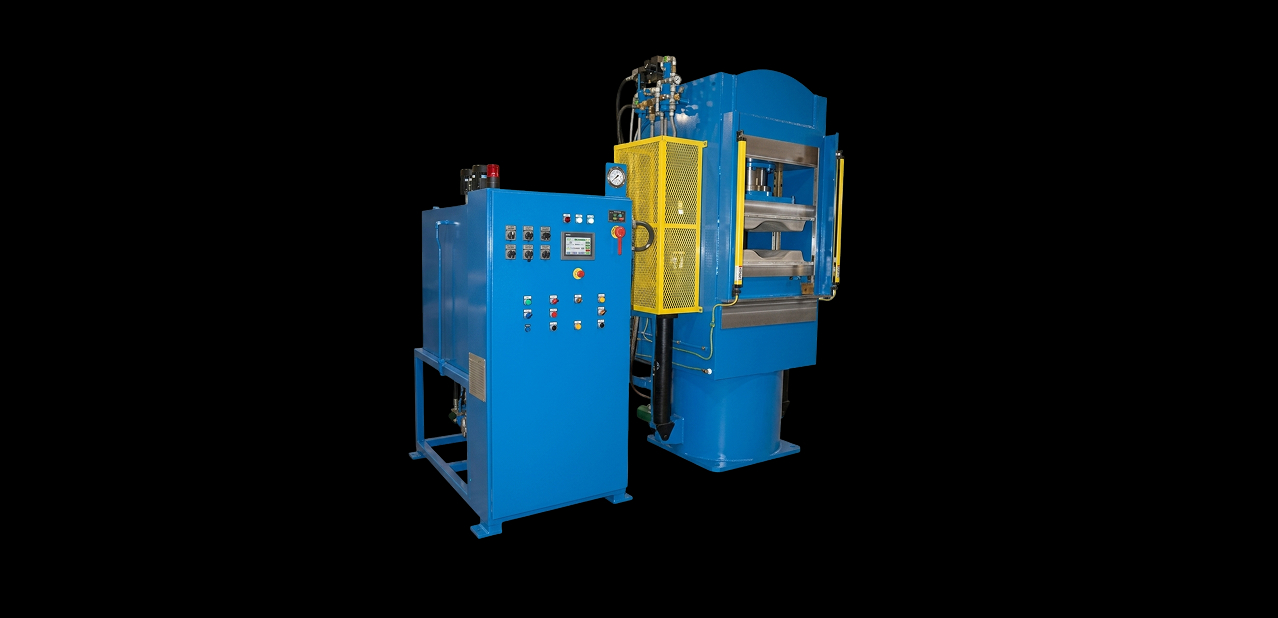

Compression molding is one of the most widely used processes in rubber, polymer, and composite manufacturing. It is a direct process: material is placed in an open mold, the press closes under controlled force and temperature, the material flows and cures, and the finished part is removed. The simplicity of the basic sequence makes it applicable across a wide range of materials and part geometries, but the press specifications that determine whether the process runs reliably are more involved than the process description suggests.
Understanding when compression molding is the appropriate process, and what the press needs to do it well, helps engineers and procurement teams build more accurate specifications from the start rather than discovering limitations after the system is in production.
If you are specifying a compression molding press or evaluating your current process, contact Accudyne to discuss your application requirements.
1. When Compression Molding Is the Right Process
Compression molding is well suited to applications where the material can be pre-formed or weighed out as a charge, placed directly into the mold cavity, and processed under heat and pressure without requiring injection or transfer systems. The process handles a wide range of materials and part geometries and is commonly used in both low-volume and high-volume production environments.
Applications where compression molding is commonly used include:
- Rubber seals, gaskets, O-rings, and molded rubber components
- Sheet molding compound (SMC) and bulk molding compound (BMC) parts
- Thermoset polymer components requiring controlled cure under heat and pressure
- Powdered metal, ceramic, carbon, and other compacting applications requiring precise, uniform density, Accudyne’s compression molding and compacting press systems cover this range from 230 ton to 2,500 ton capacity
- Composite parts where fiber layup and direct compression are preferred over transfer or injection methods
- Pharmaceutical pre-blends and other regulated materials requiring precise density control
The process is generally not the first choice for thin-wall parts with complex internal geometry, parts requiring very tight dimensional tolerances on features that depend on controlled material flow, or applications where the material charge cannot be placed accurately enough to avoid excessive flash or inconsistent fill. In those cases, transfer molding, injection molding, or other processes may be more appropriate.
2. Tonnage: What It Means and What It Does Not
Tonnage is typically the first specification discussed when a compression molding press is being evaluated. It is also one of the most commonly misunderstood. Pressing force determines the maximum clamping pressure the press can apply, but it does not by itself determine whether that pressure is applied uniformly across the part, whether the press can maintain that pressure stably during the cure cycle, or whether the platen and frame can support the load without deflecting in ways that affect part quality.
For a given part, the required tonnage is derived from the projected area of the part and the specific molding pressure required by the material. A larger part requires more total force to achieve the same pressure per unit area. A material requiring higher specific pressure requires more total force for a given part size.
Factors that affect how tonnage translates to actual press performance include:
- Platen size relative to the mold footprint, a press with excess platen area relative to the mold may apply force less uniformly than a press sized closer to the tooling
- Frame rigidity and deflection under load, which affects whether the nominal pressing force is actually delivered uniformly across the mold parting surface
- Cylinder arrangement and whether the press uses a single central cylinder or multiple cylinders to support pressure distribution
- Whether the application involves off-center loading, which places asymmetric demands on the frame and platen
Oversizing a press beyond what the application requires is not always beneficial. Larger systems introduce higher cost, slower hydraulic response, and additional energy consumption without necessarily improving part quality. Accurate tonnage calculation based on part area and material pressure requirements produces a more reliable specification than applying a large safety factor to an approximate number.
3. Platen Size, Parallelism, and Pressure Distribution
Platen size and parallelism under load are among the most important factors in compression molding press performance, and they are often given less attention than tonnage during the specification process.
Platen size needs to be matched to the mold footprint with appropriate clearance for tooling attachment, thermal connections, and maintenance access. A platen that is significantly larger than the mold concentrates the press force through the mold contact area while the unsupported platen area flexes, which can affect parallelism and pressure distribution across the mold surface.
Platen and parallelism considerations relevant to compression molding include:
- Platen flatness and surface condition, which affect how evenly the press force is transferred to the mold parting surface
- Platen support under load, how the frame and bolster structure maintain alignment as force is applied
- Guided bolster systems for applications requiring tight parallelism control throughout the stroke, Accudyne’s custom press systems are engineered to the thermal and structural requirements of each application
4. Thermal System Requirements
Most compression molding applications require the press platens to deliver and maintain heat at a specified temperature throughout the cure cycle. The thermal system, including how heat is generated, distributed across the platen surface, and controlled throughout the cycle, directly affects cure consistency and part quality.
Thermal considerations relevant to compression molding press specification include:
- Required platen temperature and acceptable temperature variation across the platen surface
- Heating method;
,electric, hot oil, or steam, and how each performs for the application’s temperature range and cycle requirements - Heating and cooling rates where the process requires temperature changes within the cycle
- Multi-zone temperature control for large platens where temperature uniformity across the full surface requires independent zone management
- Thermal isolation between the heated platen and the press frame to control heat loss and protect structural components
Temperature variation across the platen surface can produce cure inconsistencies, particularly in larger parts where the material at the platen edges may experience different thermal conditions than material at the center. The platen thermal design needs to account for the full mold footprint rather than an average temperature target. Accudyne’s custom platen systems are designed around the specific temperature uniformity requirements of each application.
5. Motion Control and Cycle Sequencing
Compression molding processes often require more than a simple open-close-cure-open cycle. Material behavior during mold close, cure onset timing, and controlled decompression at cycle end all depend on how the press moves and how those movements are controlled.
Motion control considerations in compression molding press specification include:
- Closing speed profiles, fast approach during open travel and controlled closing speed as the mold engages the material to avoid trapping air or displacing the charge
- Pressure ramping capability to apply force gradually during material flow rather than at full tonnage from initial contact
- Bump cycling for applications where brief pressure releases during early cure assist in air evacuation
- Dwell time control at cure pressure and temperature

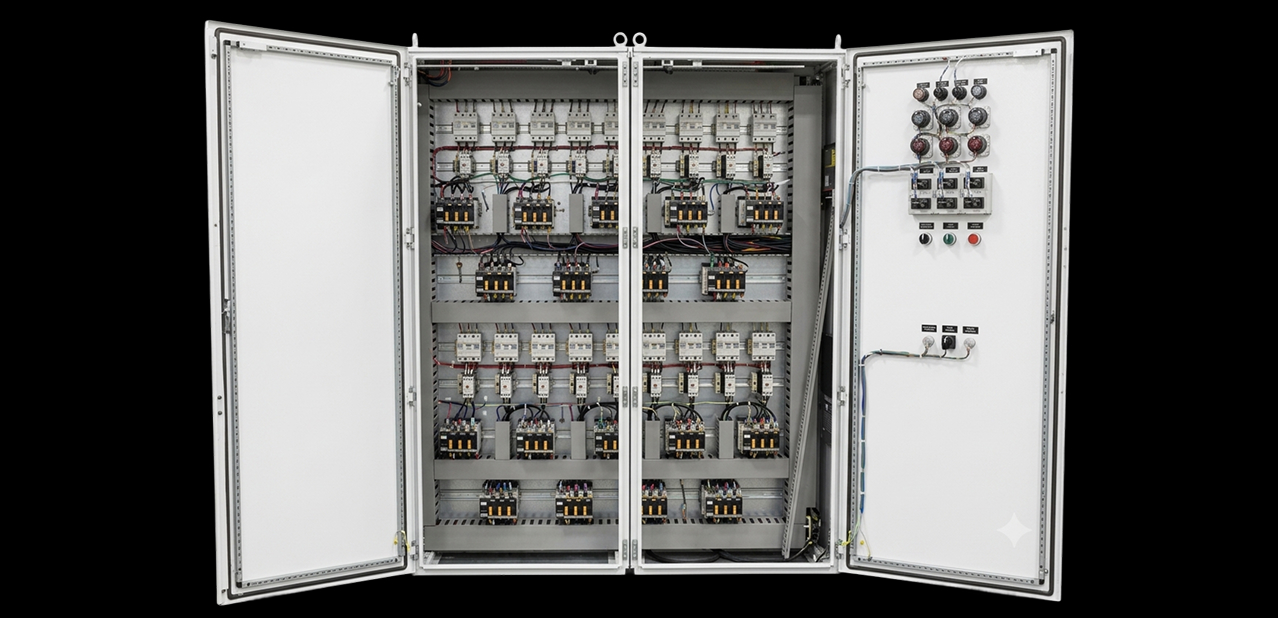

- Recipe-based process control for operations running multiple part or material configurations, Accudyne’s process control upgrades are available for existing presses where cycle control capability needs to be improved
The interaction between closing speed, pressure application, and thermal conditions at the start of the cure cycle is one of the areas where process control has the most direct effect on part quality. A press that applies full tonnage immediately on mold contact may produce different material flow and consolidation behavior than one that ramps pressure while the material is still in its early flow phase.
6. Tooling Integration and Daylight Requirements
The press needs to accommodate not just the mold itself but the full tooling arrangement including heating and cooling connections, ejector systems, alignment features, and any automation interfaces.
Tooling and daylight considerations include:
- Closed mold height and the minimum daylight needed to close the press on the tooling
- Open daylight required for part removal, material loading, and mold change access
- T-slot or custom mounting arrangements for tooling attachment and alignment
- Clearance for thermal fluid connections, thermocouple routing, and hydraulic tooling circuits
- Ejector system integration if parts cannot be removed from the mold manually
- Shuttle systems or die carts for operations requiring mold change-out during production
Daylight requirements are often underestimated during the specification process. The minimum daylight needed is not the closed mold height, it is the closed mold height plus the clearance required for part removal, loading access, and any tooling that needs to clear the platen area during a mold change.
7. Applications That Extend Beyond Standard Compression Molding
Compression molding presses are also used for compacting applications that share the basic press mechanics but involve different materials and much higher specific pressure requirements. Accudyne’s compression molding and compacting press systems cover applications including powdered metals, carbon, ceramics, tungsten carbide, copper, granular blends, and pharmaceutical pre-blends, where the press needs to deliver precise, uniform density across varying cross-section geometries.
These applications often place additional requirements on the press control system, material handling, and safety design that go beyond what standard rubber or polymer molding requires. Electrical control systems for compacting of explosive or hazardous materials, for example, require design to hazardous area standards that affect the entire press electrical system.
Extended application considerations may include:
- Programmable positions, speed settings, compaction tonnage, and dwell time for multi-stage compacting cycles
- Side ram capability for horizontal application of clamp tonnage in certain tooling configurations
- Automated material handling from part eject through shuttle systems for high-volume compacting operations
- Hazardous environment electrical design for explosive powder compacting
8. Starting the Press Specification
A complete specification is not required to begin a useful conversation about compression molding press requirements. Most projects start with a description of the material and part, an approximate mold size, and a production volume target.
Useful information when contacting Accudyne about a compression molding press includes:
- Material type and processing temperature requirements
- Part dimensions and approximate mold footprint
- Required pressing force or specific molding pressure if known
- Production volume and target cycle time
- Thermal system preference or constraints if applicable
- Any known tooling integration requirements such as ejectors, shuttles, or automation
- Facility constraints including floor space, ceiling height, and available utilities
Whether you are specifying a new compression molding press, evaluating an upgrade to an existing system, or looking at a compacting application with specialized requirements, Accudyne’s engineering team can help define the right system for your process.
FAQ
How is the required tonnage calculated for a compression molding application?
Required tonnage is calculated from the projected area of the part (in square inches) multiplied by the specific molding pressure required by the material (in pounds per square inch). For example, a part with a 50 square inch projected area processed at 1,000 psi specific pressure requires 50,000 pounds, or 25 tons, of clamping force. Material suppliers typically provide recommended specific molding pressures, though actual process conditions may require adjustment based on part geometry and tooling design.
What is the difference between compression molding and transfer or injection molding?
In compression molding, the material charge is placed directly in the open mold cavity and the press closes to flow and cure the material under heat and pressure. Transfer and injection molding use a separate chamber or barrel to pre-heat and inject material into a closed mold under pressure. Compression molding is generally simpler and better suited to larger parts, thicker sections, and materials that can be pre-formed as a charge. Transfer and injection processes are often preferred for more complex geometries, tighter tolerances, and materials that benefit from controlled injection flow. Accudyne’s compression molding and compacting press systems are designed specifically for direct compression applications.
How important is platen temperature uniformity in compression molding?
Temperature uniformity across the platen surface is a direct factor in cure consistency, particularly for larger parts where the material at the platen edges may experience different thermal conditions than material at the center. Variation of more than a few degrees across the mold area can produce inconsistent cure, part warpage, or property variation across the molded section. Accudyne’s custom platen systems are engineered to the uniformity requirements of each application rather than to a generic standard.
Can an existing compression molding press be upgraded to improve process control?
In many cases, yes. Presses with structurally sound frames but outdated control systems can often be upgraded to add recipe-based cycle control, improved pressure and position feedback, temperature profiling, and data logging capability. Accudyne’s process control upgrades and equipment rebuild services cover situations where the mechanical platform is adequate but the control system is limiting process capability.
What materials can be processed on a compression molding press?
Compression molding presses are used with a wide range of materials including rubber compounds, thermoset polymers, sheet molding compound (SMC), bulk molding compound (BMC), fiber-reinforced composites, and, in compacting applications, powdered metals, ceramics, carbon, tungsten carbide, copper, granular blends, and pharmaceutical pre-blends. The press specifications required vary significantly depending on the material’s processing temperature, specific pressure requirement, and cure or compaction cycle characteristics. Contact Accudyne to discuss the requirements for your specific material and application.
